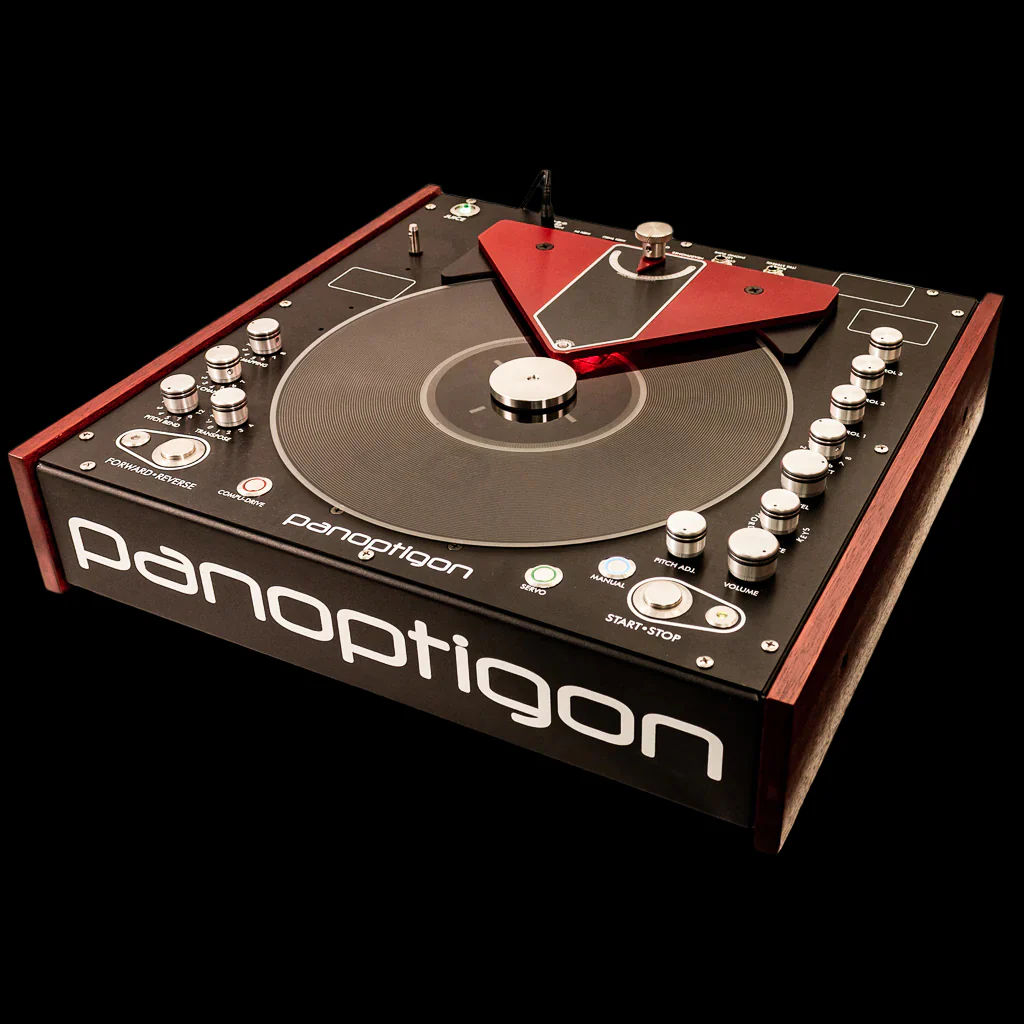

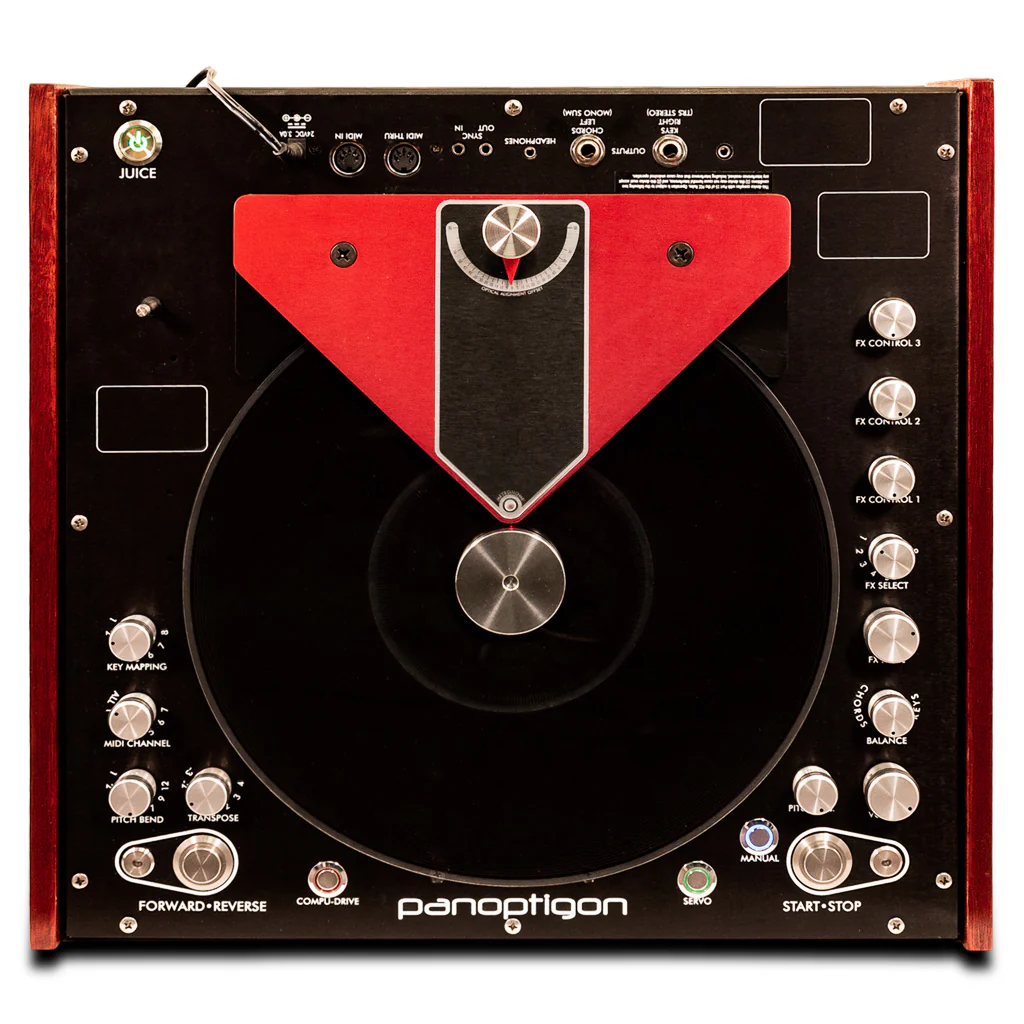

The PANOPTIGON's modern transport and audio electronics provide improved playback of several 1970-era optical disc formats, but that is only the beginning! Using a MIDI controller and direct physical touch, dramatic speed changes, modulation, transposition, reversing, and scratching, combined with modern effects, expand the possibilities of loop-based sampling, while CompuDrive provides accurate pitch control when required.

Each optical disc contains up to 60 sound tracks. The original Optigan and Orchestron program discs came in many popular styles, some with rhythm tracks and special effects, and our proprietary mastering system allows us to release unissued discs from master tapes preserved by Optigan guru Pea Hicks. In addition, we have created many new discs, which go further in exploring and exploiting the cyclical nature of the playback loop, resulting in loop libraries with endlessly entertaining combinations.

3-Disc Starter Pack is included which includes the Vocal Choir, Singing Rhythm, and Oscillations discs. NO SUBSTITUTIONS

Specifications
Maximum Polyphony

60 Voices

Power

Power Supply PS-24 (24 V DC, 3A)

Dimensions

W x D x H
17.6" x 16.75" x 5.25" (44.7 cm x 42.5 cm x 13.3 cm)

Weight 13.4 lbs (6.08 kg) without cover

15.1 lbs (6.85 kg) with cover

Connectors

MIDI IN, THRU

Headphones 3.5mm

Audio Output LEFT - MONO SUM, RIGHT - TRS Stereo

Output Impedance 1kOhm

SYNC IN 3.5mm

SYNC OUT 3.5mm

Included Accessories

Dust Cover

PS24 Power Supply

AC Cord

Disc Starter Pack Vocal Choir, Singing Rhythm & Oscillations

Owner's Manual
Resources
- The manual contains detailed info for setup and technical specs.

W x D x H	17.6" x 16.75" x 5.25" (44.7 cm x 42.5 cm x 13.3 cm)
Weight	13.4 lbs (6.08 kg) without cover
	15.1 lbs (6.85 kg) with cover

MIDI	IN, THRU
Headphones	3.5mm
Audio Output	LEFT - MONO SUM, RIGHT - TRS Stereo
Output Impedance	1kOhm
SYNC IN	3.5mm
SYNC OUT	3.5mm

	Dust Cover
	PS24 Power Supply
	AC Cord
Disc Starter Pack	Vocal Choir, Singing Rhythm & Oscillations
	Owner's Manual

Discontinued Items

Price

Collections

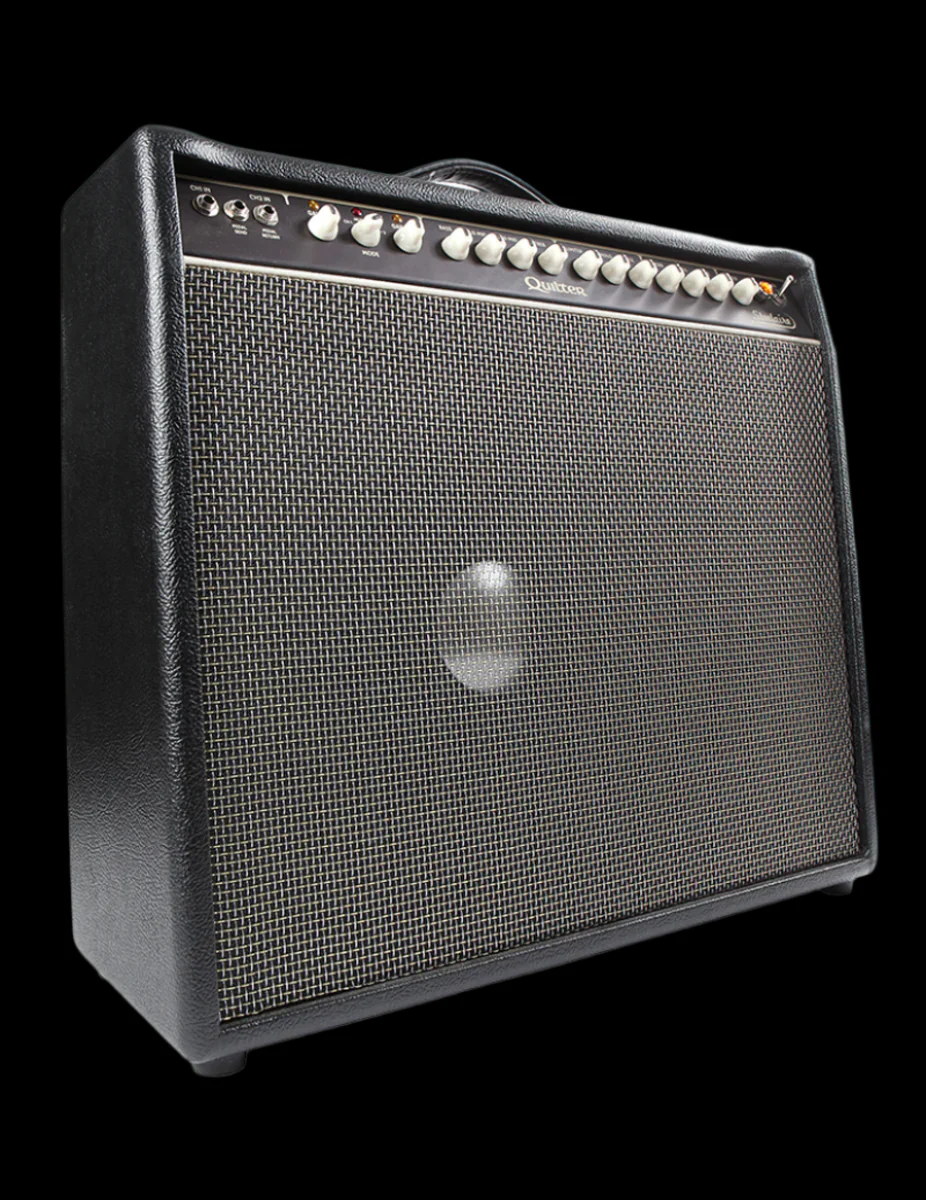

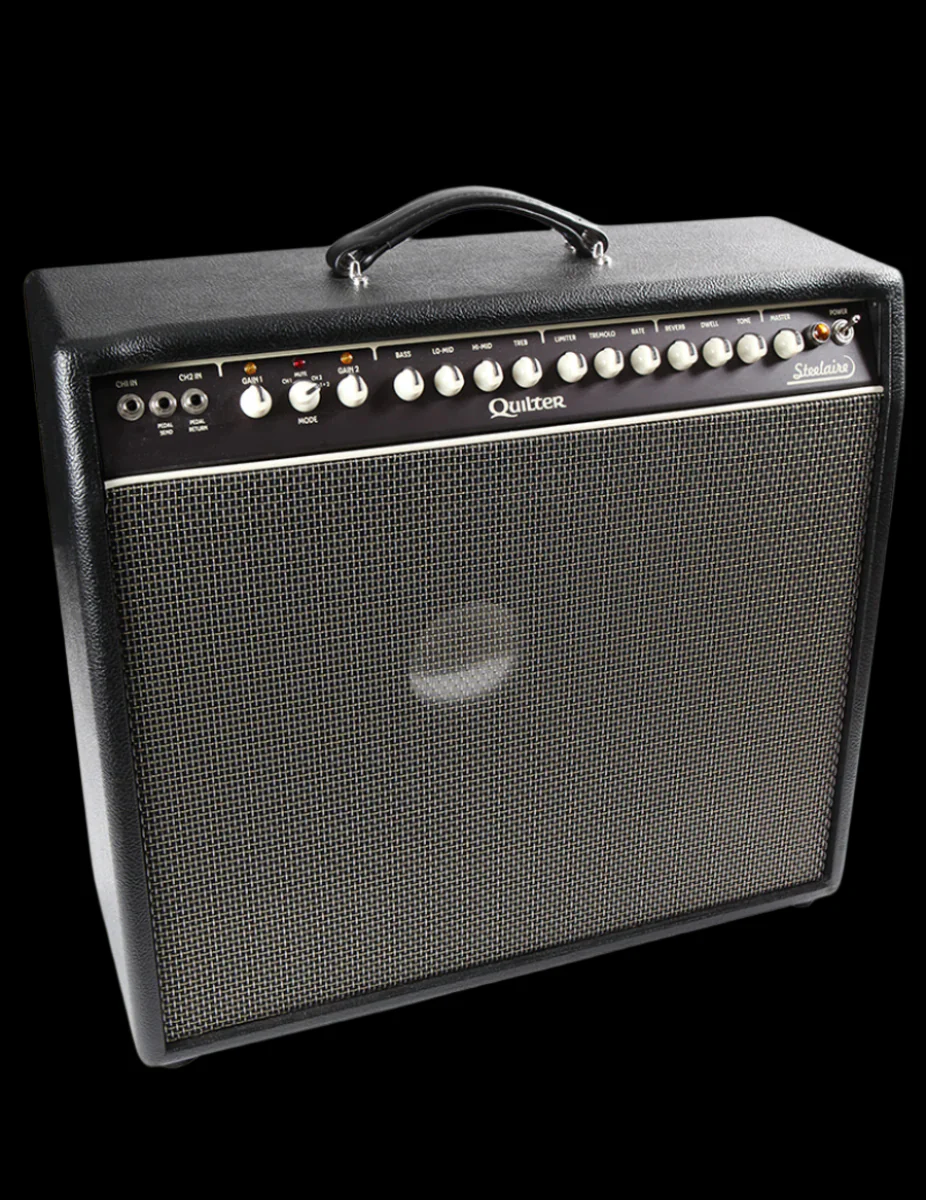

Steelaire Combo

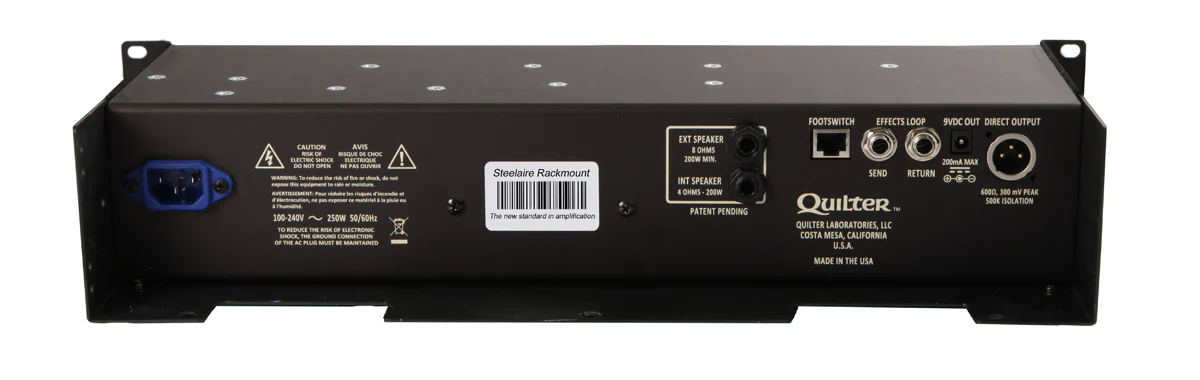

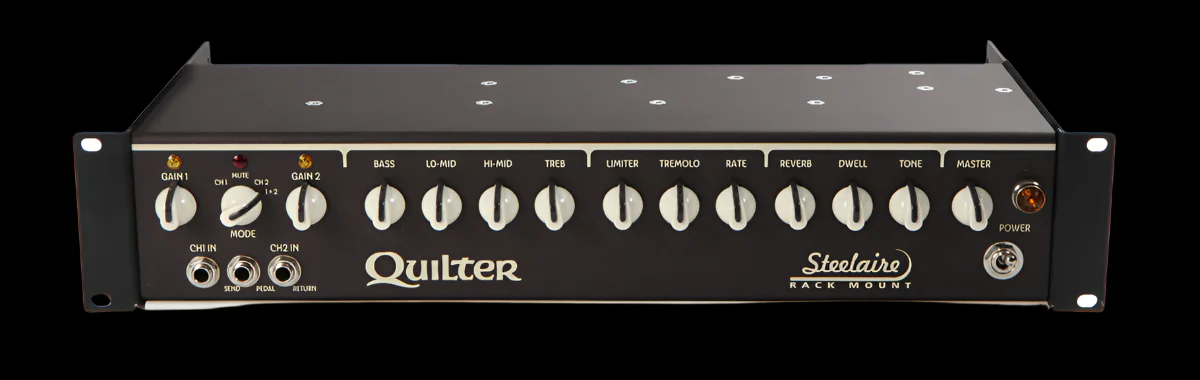

Steelaire Rackmount

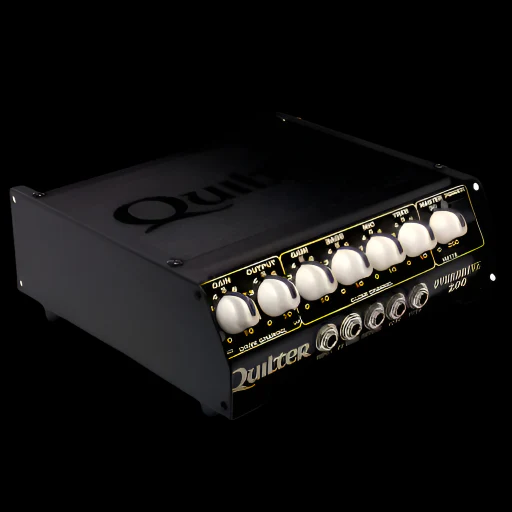

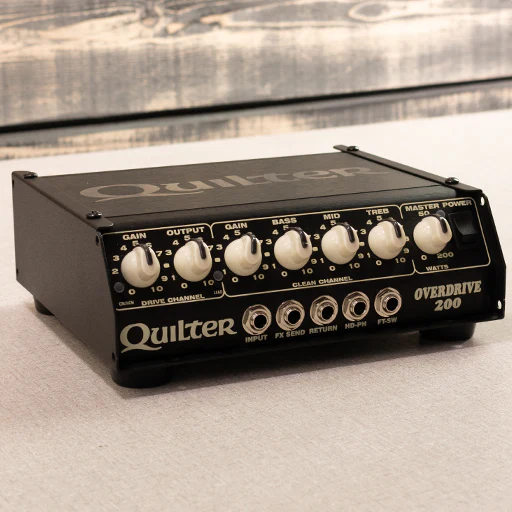

OverDrive 200
